360 Degree Launch Event

Pier Sixty-Six, Fort Lauderdale, FL

The Brief

When a major pharmaceutical company set out to launch a new drug to their national sales force, they didn't want a standard meeting. No rectangle stage. No projectors flanking a podium. They wanted something that felt as bold and momentum-building as the product itself, an environment that would genuinely inspire their team and signal that this launch was different.

Working with River Knoll Productions, the production design team conceived a striking solution: a circular stage positioned dead center in the room, four large-format LED video walls anchoring each corner, pipe and drape forming a circular perimeter, and a circular lighting truss overhead. The client's drug branding featured a circular labyrinth motif, and the venue itself, Pier Sixty-Six, echoed that circular theme in its own architecture. Everything aligned.

However, for audio, this creative vision presented a genuine technical challenge, and that's where dBV Audio was brought in.

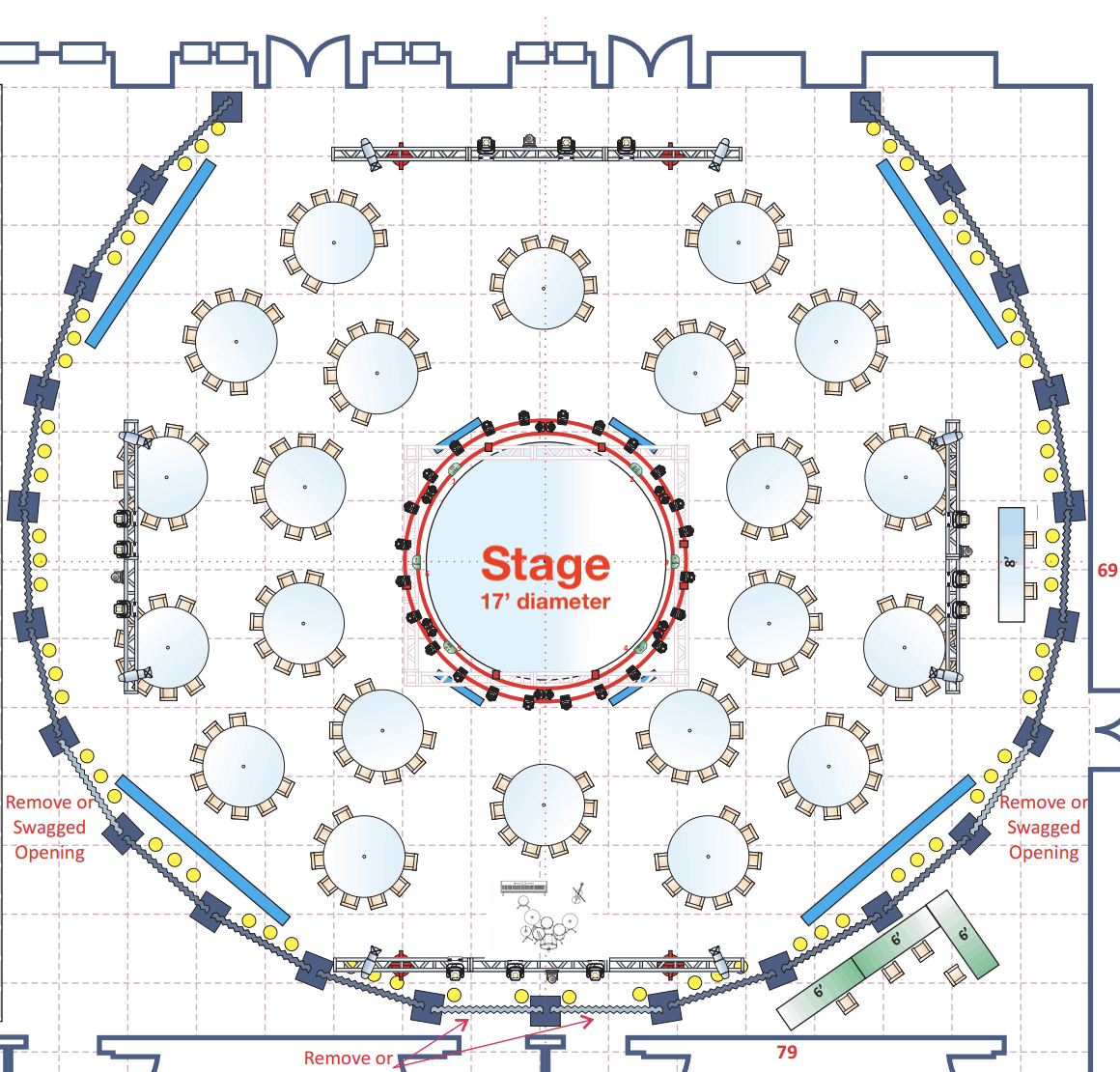

Overhead Room Layout Design

The Challenge

360 degree staging is rare in corporate events for good reason. A circular audience means no natural front-of-house position, no traditional speaker placement, and no easy answers. Presenters would work the stage in the round, meaning half the audience would always be looking at their backs. Stand-mounted speakers were out as sightlines had to remain clean from every angle.

Then, after the main system design had already been finalized and signed off on, the client added a live jazz band to be positioned at the perimeter of the room. The band included a keyboardist, drummer, and a violinist who would move freely through the audience and onto the stage itself, making her effectively another roaming audio source in an already complex acoustic environment.

The mandate was clear: every seat in the room needed to feel like a good seat. No dead zones in the audience, no hot spots, no feedback from live musicians moving through the crowd.

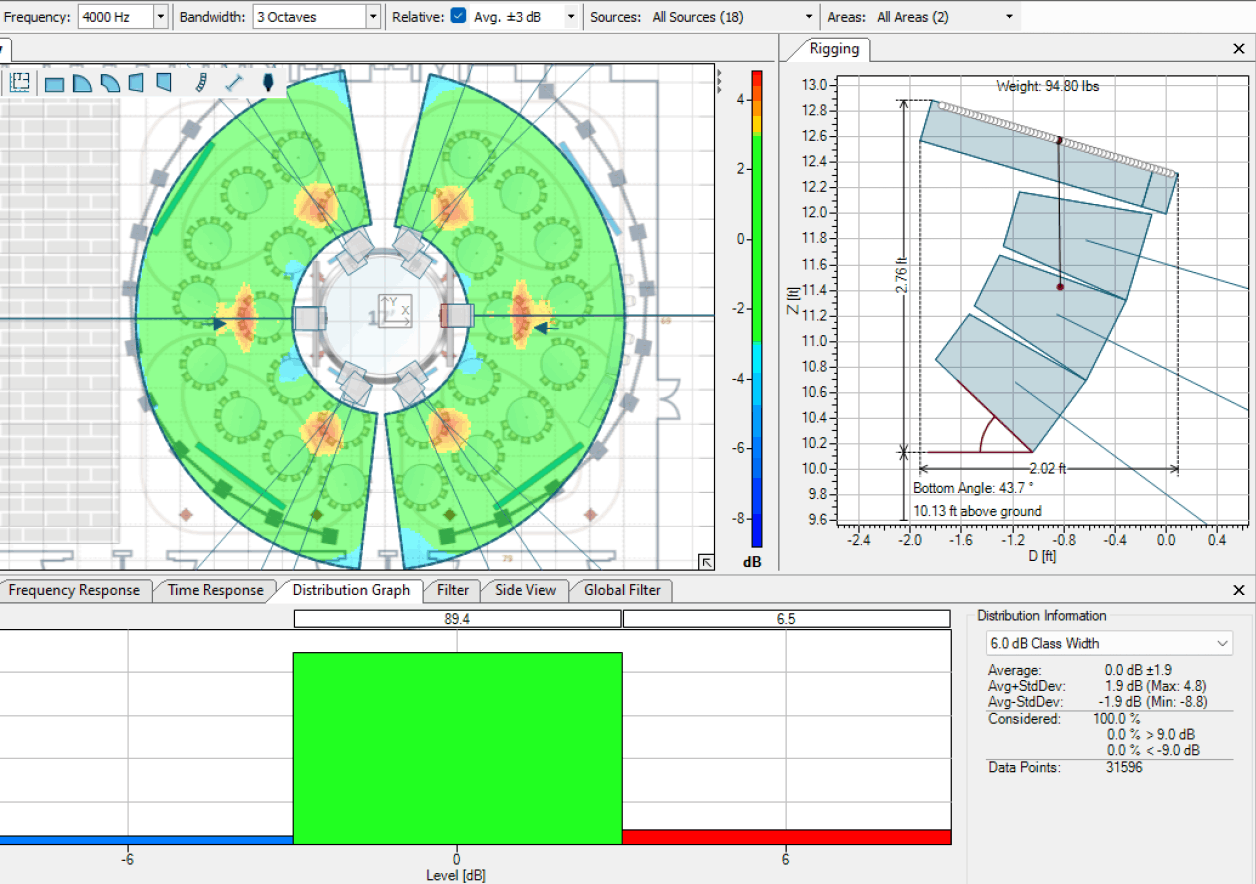

EASE Focus 3 SPL coverage prediction

The Solution

A successful 360 degree audio system starts long before load-in. Using EASE Focus 3, professional acoustic prediction software, dBV Audio modeled the entire speaker system coverage and SPL digitally before a single cable was pulled. Every speaker position, angle, coverage pattern, and phase relationship was tested and refined in software first, allowing the design to be optimized for the unique circular layout without costly trial and error on site.

The heat map to the left shows the predicted SPL coverage across the audience area. Green indicates seats within the target coverage window. Orange and red indicate areas slightly above average level, typically closest to the speakers. Blue indicates areas below average, primarily near the stage itself and the room entry points where no audience was seated. The distribution graph at the bottom confirms that 89.4% of the audience area fell within a +/-3dB window, meaning nearly every seat in the room received essentially the same volume level regardless of where an attendee was sitting. For a circular room with no traditional front-of-house orientation, that result represents a high standard of even coverage.

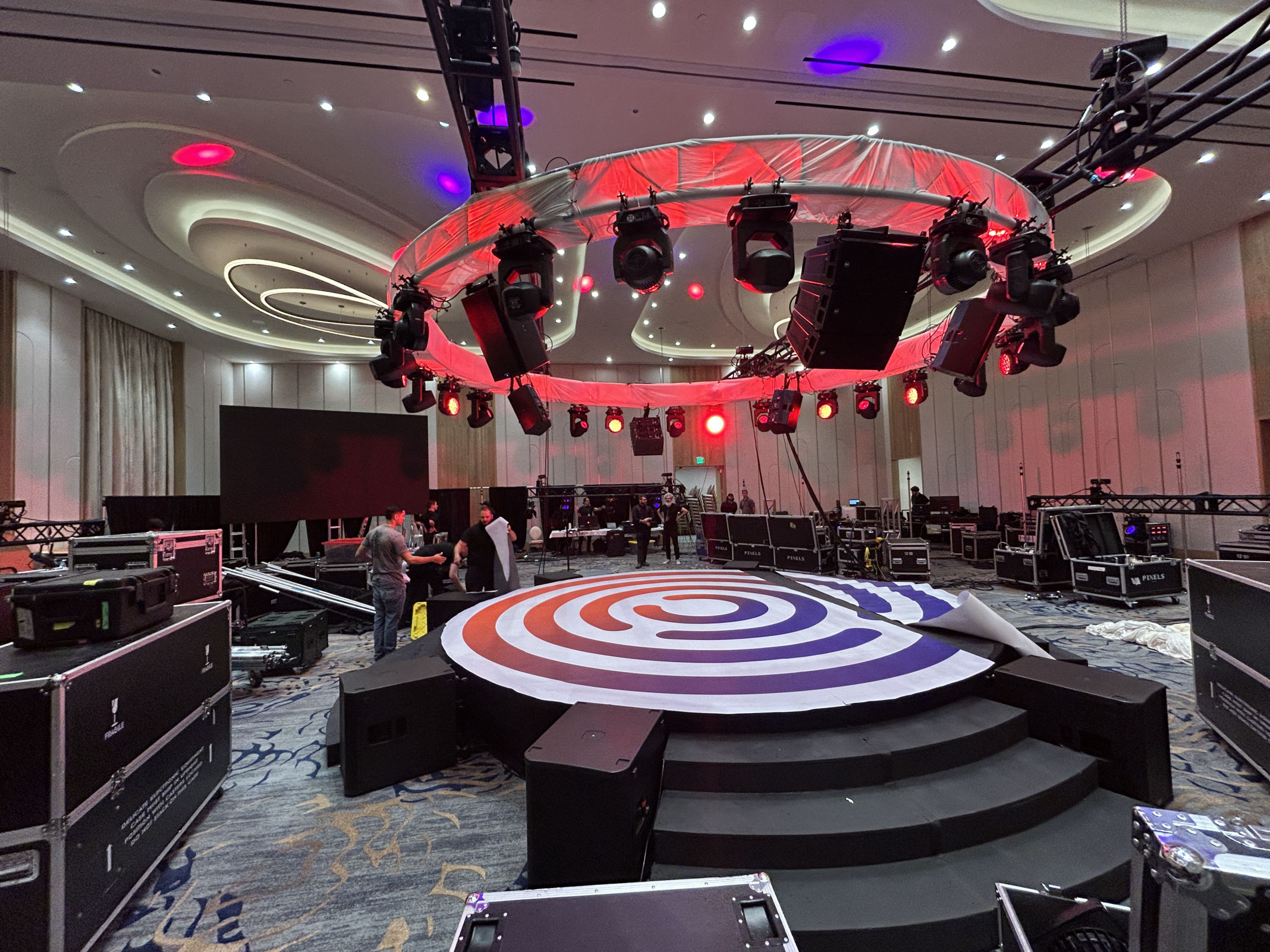

The stage going down and truss going up

The final system used a combination of RCF HDL6 line array boxes and QSC K12.2 point source speakers, all flown from the circular truss overhead. Imagining the room as a clock face, two clusters of three RCF HDL6 boxes served as the primary mains, one cluster covering the left half of the room, one mirroring it on the right. Each HDL6 cluster provided 100 degrees of horizontal coverage, handling the bulk of the audience. Four QSC K12.2 point source speakers filled in where the line arrays naturally fell off, one at each side of each half, covering the areas the main clusters couldn't fully reach. RCF HDL6 cabinets were also deployed as low-profile front fills around the circular stage perimeter, their wide 100 degree dispersion providing even coverage for the closest rows without visual intrusion.

Coverage was intentionally kept lighter in the area where the jazz band would be performing. Any live instrument or vocalist positioned in front of an active PA system creates a potential feedback loop, and with a roaming violinist moving freely through the audience, managing that risk was a priority from the design stage. Reducing coverage in the band's zone gave the system built-in headroom, allowing the overall PA levels to stay consistent and controlled throughout the event without compromise.

One challenge that doesn't always make it into the pre-show planning conversation is presenter monitoring. With audio carefully kept off the stage, reducing SPL on stage by approximately 8dB compared to the audience area, presenters would likely hear their own voice bouncing back at them from all directions with no direct sound to anchor their perception. That kind of audio environment can be genuinely disorienting for a speaker on stage. A carefully tuned set of stage monitors placed on the subwoofers around the stage provided just enough direct sound to give presenters a clear, natural reference without pushing levels anywhere near feedback territory. It was a delicate balance, and one that made a real difference in presenter confidence and comfort throughout the event.

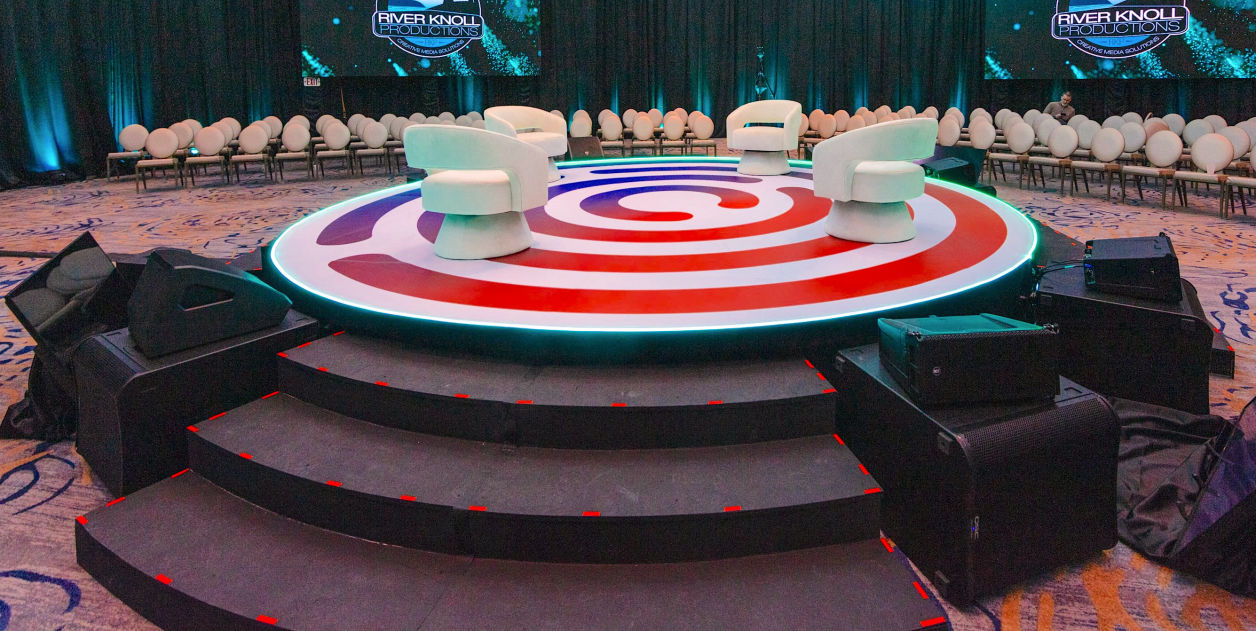

Subwoofers, front fills, and stage monitors lining the stage

Six QSC KS118 subwoofers were distributed evenly around the stage floor. The acoustically ideal placement would have been a single flown sub cluster centered above the stage, perfectly phase coherent and evenly distributed in every direction. That approach was fully developed, including sourcing appropriate flyable subwoofer options. Ultimately, truss height limitations and visual considerations led to a floor-based approach instead.

It was the right call. Great audio production isn't always about achieving perfect specs on paper. Sometimes the best technical decision is the one that serves the overall event experience rather than the measurement chart. A flown sub cluster centered above the stage would have been acoustically superior, but it would have distracted the audience, potentially unnerved presenters, and compromised a visual design the client had invested significant creative energy into. The floor-based placement delivered more than adequate low-end weight for a primarily vocal presentation, and kept the focus exactly where it belonged: on the stage and the people on it.

The Result

The four-day event ran without incident. Presenters moved freely and confidently across the circular stage, the violinist roamed the room and took the stage without a single feedback issue, and attendees seated in every direction experienced consistent, clear audio throughout.

The most telling measure of success came on the final day. In corporate event production, the technical team almost never gets acknowledged publicly. When everything goes right, the crew and the gear are entirely invisible, which is exactly how it should be. So when the client stepped to the microphone during the closing session and personally called out the production team by name, thanking them in front of the entire assembled sales force and leadership for creating something truly special, it was a rare and genuine moment of recognition.

The 360 degree format, once a source of significant technical concern, became one of the defining elements of an event that delivered exactly what the client had envisioned from the start — something bold, memorable, and unlike any sales meeting their team had ever experienced.

At A Glance

Venue: Pier Sixty-Six, Fort Lauderdale, FL

Event type: Pharmaceutical drug launch, national sales meeting

Attendees: approximately 200

Duration: 4 days

PA system: RCF HDL6-Mains | QSC K12.2-Side Fills | RCF HDL6-front fills | QSC KS118-Subwoofers

Wireless: 10 channels Shure ULXD with DPA 4080 lavalieres

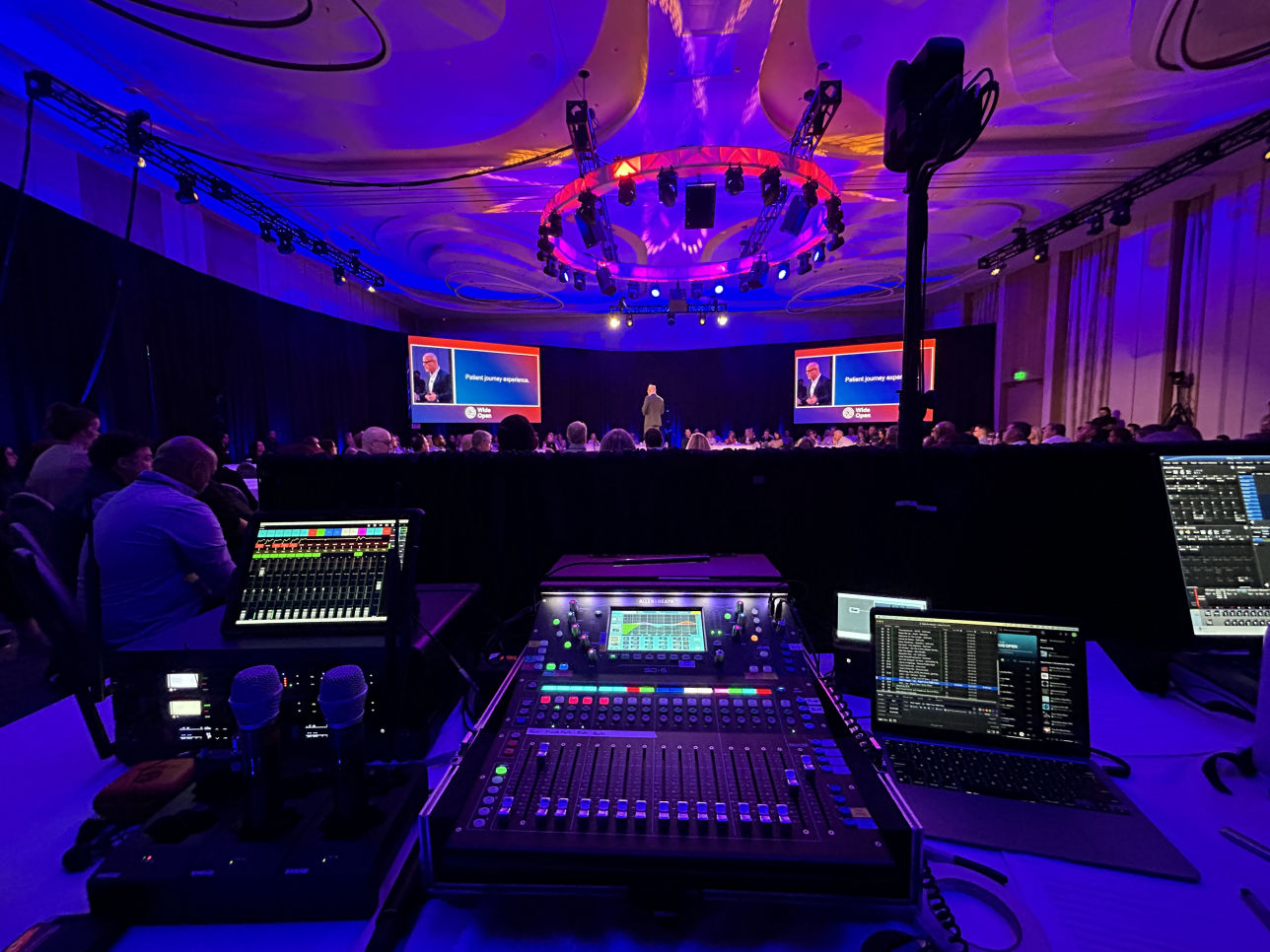

Console: Allen & Heath SQ5

Video: Four 16.4' x 9.8' LED video walls | 4 DSM's | IMAG via 3 Sony FR7 PTZ Cameras

Production partner: River Knoll Productions

Acoustic prediction: EASE Focus 3
